Xlaserlab CL-100 100W Fiber Laser Cleaning Machine Laser Rust Removal Trolley-Type Handheld Machine
50% OFF Super Early Bird Price!
1-Year Manufacturer Warranty
픽업 사용 가능 여부를 로드할 수 없습니다.
제품 정보

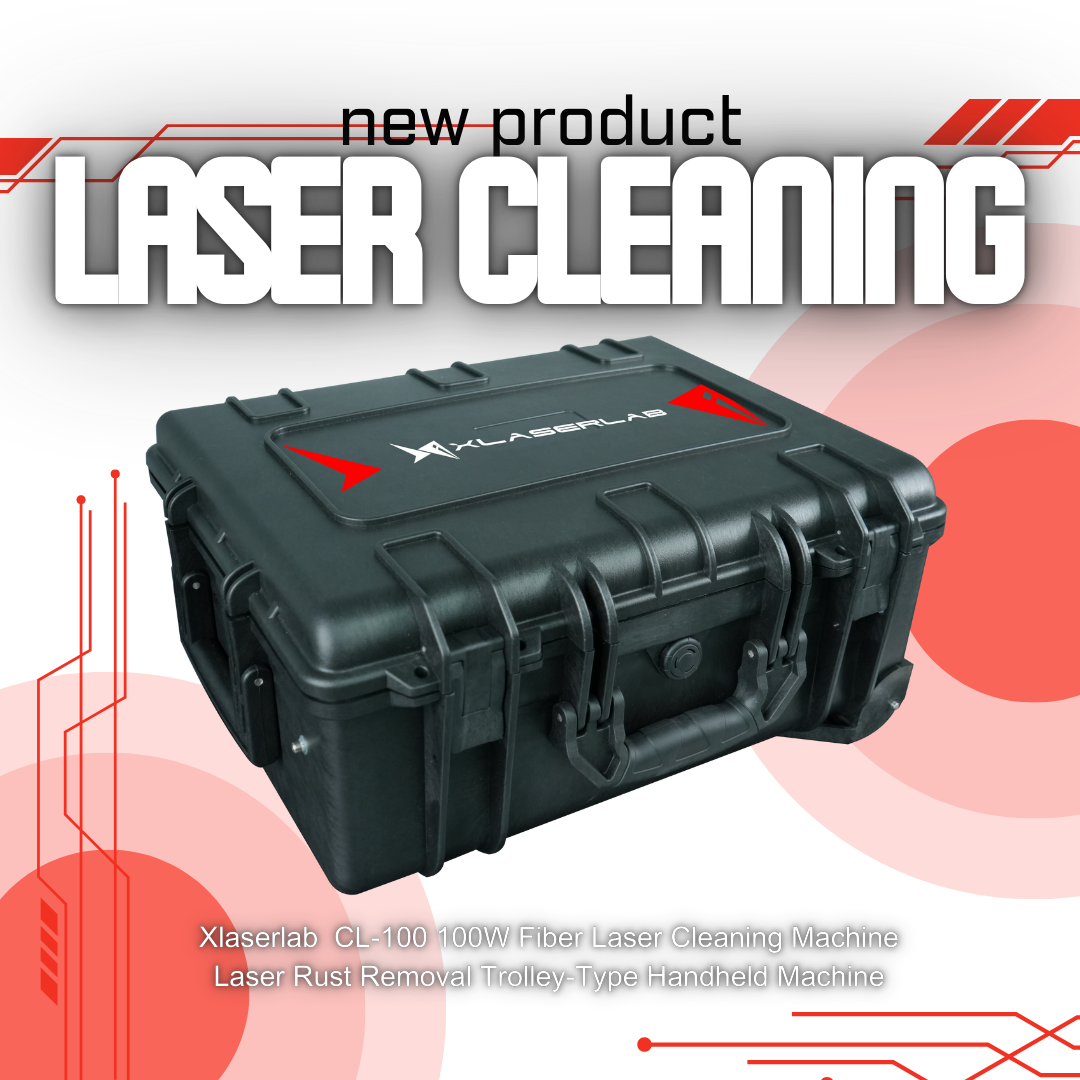

Xlaserlab CL-100 100W Fiber Laser Cleaning Machine
This handheld laser cleaner adopts a trolley case design, which is easy to install, easy to move, easy to operate, and can be used automatically; this machine is designed for user convenience, allowing for effortless automatic operation. You only need to plug in the power and turn it on, and then you can start to use it immediately.
100W Trolley-Type Handheld Laser Cleaner Details
The 100W handheld laser cleaner is environmentally friendly; you can use the laser cleaner to achieve efficient cleaning without chemicals or water. The 100W handheld laser cleaner can effectively remove the resin, paint, oil, dirt, rust, coatings and oxide layers from the object’s surface.
The 100W handheld laser cleaner is widely used in ships, automobile maintenance, rubber molds, high-end machinery and equipment, rail transportation and environmental protection fields.
Machine Dimensions
Key Function Description
- 220V AC power interface
- The power switch, that is, the power-on and power-off buttons of the washing machine
- Emergency stop knob
- Trigger switch
- Power-on indication
- Foot switch
- Handle button, when the indicator light is green, it means that the laser can be emitted
Handheld Laser Cleaner Effects: Before vs. After
Trolley Handheld Laser Cleaner Parameters
| MODEL | XLab100 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser Power | 100W | |||||||||||
| Power Supply Voltage | Single Phase 110V/220V± 10%, 50/60Hz AC | |||||||||||
| Pulse frequency range | 1-4000khz | |||||||||||
| Maximum pulse energy | 1.5mJ | |||||||||||
| Pulse Width | 2-500ns Adjustable | |||||||||||
| Fiber Cable Length | 3 Meters | |||||||||||
| Laser wavelength | 1070nm | |||||||||||
| Laser working mode | Pulse | |||||||||||
| Cooling system | Air cooling | |||||||||||
| Beam diameter | 4.0±0.5mm | |||||||||||
| Anti-reflective protection | Have | |||||||||||
| Power Supply | 220V | |||||||||||
| Operating temperature range | 5℃ – 40℃ | |||||||||||
| Machine size | 617mm*469mm*291mm | |||||||||||
| Net weight | 28KG | |||||||||||
LASER CLEANING HEAD PARAMETERS |
||||||||||||
| Cleaning Head Weight | ＜0.9Kg | |||||||||||
| Scanning Frequency | Not Less Than 300Hz | |||||||||||
| Maximum Scan Line Speed | About 30m/s | |||||||||||
| Scanning Width | 0mm-100mm Optional | |||||||||||
| Field Lens Focal Length | 160mm(210mm/254mm/330mm/420mm Optional) | |||||||||||
Customer Visits
Hear what they say!
X1 laser welders are compact yet highly effective, making them ideal for welding thin metal sheets and especially suitable for beginners. They solve the
common issue of holes when welding thin metals with traditional welders, offering a safer, cleaner, and more convenient welding experience.
The XLaserlab XI Pro has completely blown my mind. With this machine, anyone can make a solid weld. You can use it by hand or mount it on a device like the ArcDroid CNC, and now I can cut sheet metal up to 3mm thick! If you spend a lot of time fixing up old things, it can also blast rust off in cleaning mode. Overall, I'm really impressed with this machine.
As you've seen, these can be 5 to 10 times faster than TIG welding. A typical TIG welder earns around £35 an hour, so to get at least five times the amount of production out of them, that is a winner. If I were doing full-time TIG welding, I wouldn't hesitate to purchase one of these, because the return on investment would be substantial.
Frequently Asked Questions
Can Xlaserlab handle extreme conditions?
Yes, both the Xlaser are engineered to perform flawlessly in extreme environments, including freezing cold [-20°C（-4°F)], intense heat [up to 45°C(104°F)], and even underwater. The adaptive air-cooling system ensures consistent performance and extended lifespan.
What materials can Xlaserlab weld, cut, or clean?
The Xlaserlab X1 is designed for precision work with ultra-thin materials, capable of processing stainless steel, carbon steel, and aluminum with thicknesses ranging from 0.2mm to 2mm, making it ideal for applications requiring high accuracy without burn-through. The X1 Pro extends material compatibility and performance, handling materials in the range of 0.5mm to 3mm, including stainless steel, galvanized sheets, and carbon steel up to 3mm, aluminum and brass up to 2mm, and copper up to 1.5mm. Both models are multifunctional, supporting welding, cutting, cleaning, and rust removal, making them versatile tools for a wide range of applications.
Do I need to pay customs duties and VAT?
No, Xlaserlab covers both customs duties and VAT for all backers.
What is the difference between the X1 and X1 Pro models?
The X1 is a compact pulsed desktop spot welder that uses a semiconductor laser source. The X1 Pro features a fiber laser source, offering enhanced performance. The X1 is suitable for welding, and underwater welding, while the X1 Pro includes advanced features such as underwater welding, laser cleaning and rust removal, and precision laser cutting. Both models are compact, lightweight, and ideal for professionals and DIY users.
